The HomeLab Mk I

(Final Year Project)

Automated Film Developing Device

A compact solution to automating the development of photographic film at home

Untitled Project 1.jpg

A photo lab on your tabletop.

The HomeLab MK I is currently designed for the development of C-41 and Black & White 35mm film without the need of a dark bag. Film reeling, temperature control, chemical administration, timing and agitiation are all automated. All that needs to be done is loading the film and inputing the desired process.

All contained in a A3 size footprint.

Untitled Project 15.jpg

Modular and Flexible.

A completely removable film tank unit for use as a traditional film developing tank. Using a simple one way alignment protusion and electrical contacts for quick connect and disconnects, the Homelab can accomodate quick loading multiple film tanks for fast development of multiple rolls.

Unique problems, simple solutions.


Untitled Project 27.jpg

Film Tank Unit

Removable light tight lid that still allows manual fluid administration.

Removable 35mm film loading and cutting unit (shown in blue), opening the design to expand to 120 format film and beyond.

Untitled Project 12.jpg

Fluid Containers

Heating element with built in themostat.

Easy removable and sealing of chemical containers for chemical storage and bottle cleaning.

Untitled Project 5.jpg

Chemical Seals

Snap on lids provide easy access and refilling of chemicals

Passive NC rubber valves allows pressure equalisation whilst maintaining a seal to prevent excessive air exposure,


Minimal Chemicals. Minimal Waste.

The HomeLab Mk I only required 250ml of each chemical, and 750ml of water to function, allowing for small batch chemical mixing to minimise waste and maximise longevity of chemicals.

The bottom water waste tank has a 2.5 litre capacity, allowing for the development of 3 rolls before needing to be removed,

Untitled Project 4.jpg

Slide in, Slide out.

Slide the waste-tank in and out easily, allowing for hassle free removal of wastetwater.

The Engineering


Annotation 2020-03-02 100836.png

Designed for Durability

Untitled Project 29.jpg

Simple Ingenuity

Untitled Project 21.jpg

Getting the Basics Right



Effective FEA


Untitled Project 20.jpg

The Fundamentals & More

Untitled Project 6.jpg

Everyday Solutions for

Not-so-Everyday Problems

One way NC valved used to solve maintain pressure during movement of fluids whilst maintaining freshness of chemicals during storage.


Untitled Project 8.jpg
Untitled Project 7.jpg
Untitled Project 23.jpg

Unifying Processes for Cost Effective Manufacturing

Untitled Project 36.jpg

Simplified Layout for Easy Assembly

The HomeLab Mk I

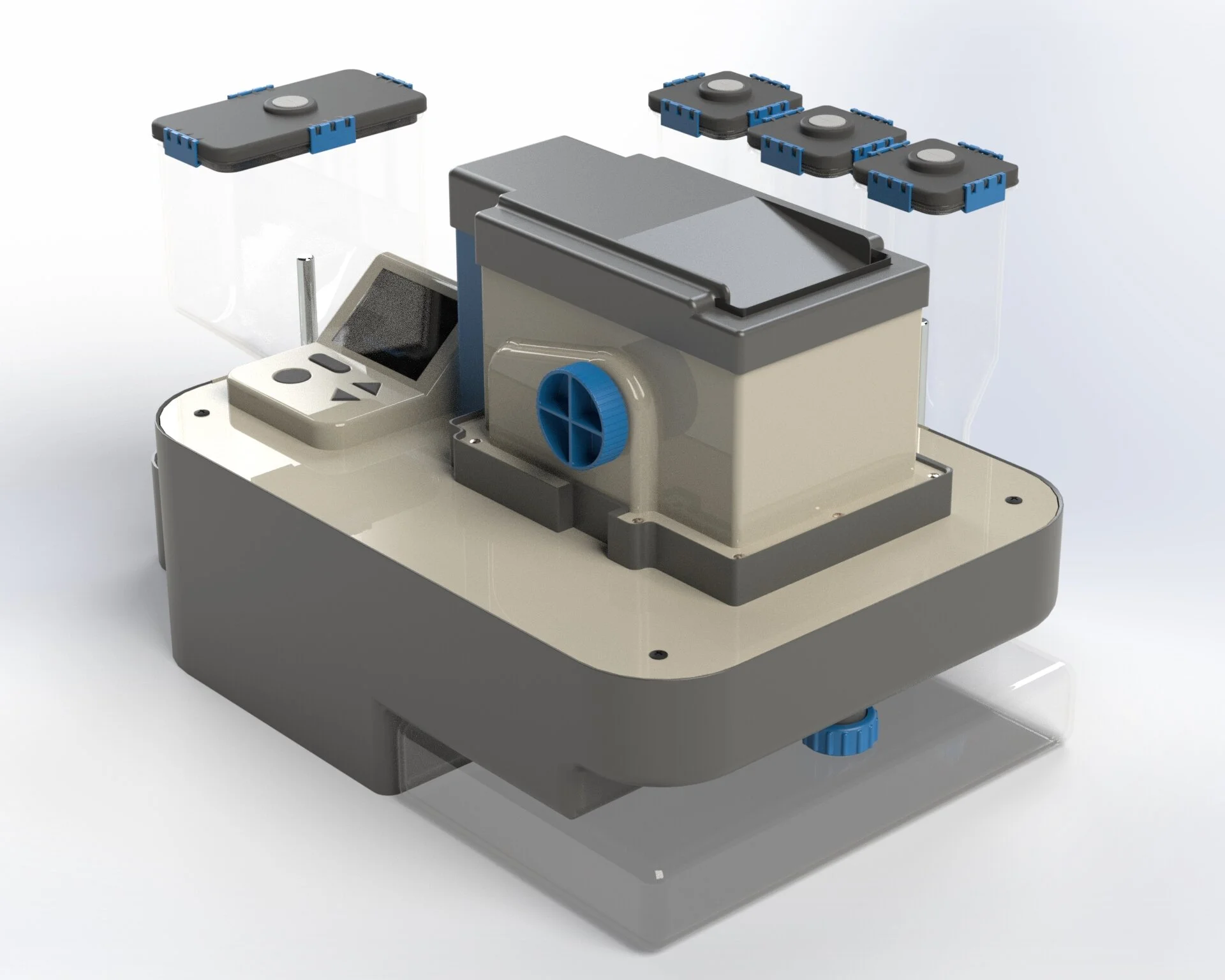

Untitled Project 17.jpg


Untitled Project 15.jpg

Get In Touch

For further details and inquiries, feel free to contact me below,
